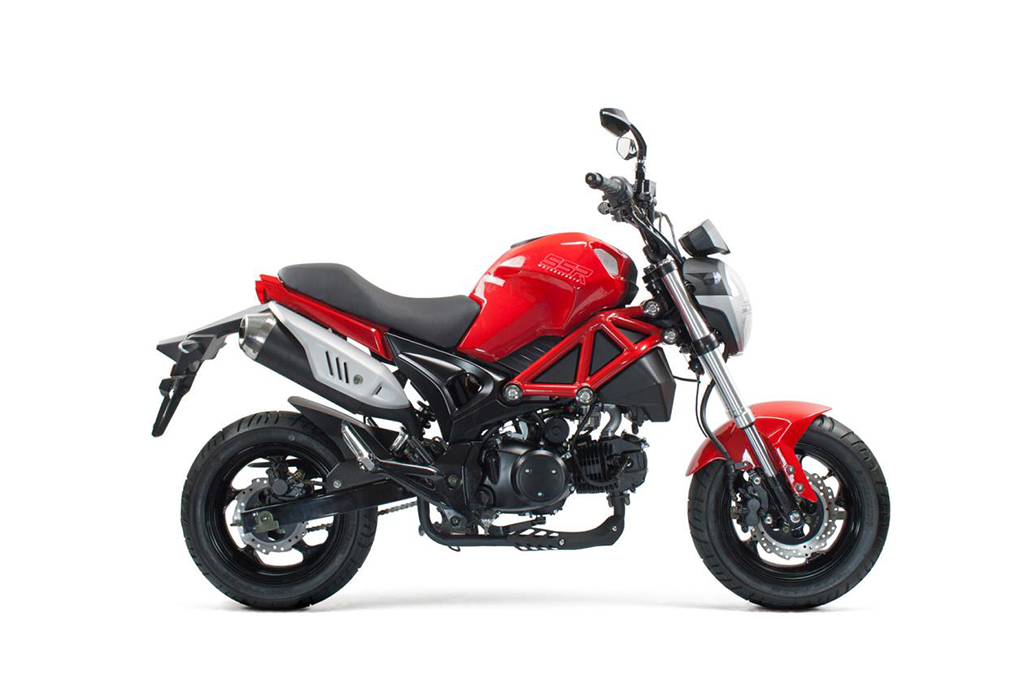

SR170TX

5

ENGINE

Engine Type 125cc, 4 Stroke Cylinder, Air Cooled
Bore And Stroke 52.4mm x 55.5mm
Compression Ratio 9.0 : 1
Carburetor PZ20
Max Output 8.04 hp @ 8000 rpm
Ignition CDI
Start Mode Electric
Start
Transmission 5 Speed Manual

CHASSIS

Front Suspension Hydraulic, Inverted
Rear Suspension Standard Coil Spring Shock
Front Brake Disc
Rear Brake Disc
Front Wheel / Tire Aluminum Alloy / 120/70-12
Rear Wheel / Tire Aluminum Alloy / 120/70-12
Frame Steel
Swingarm Steel, "straight" Type

DIMENSIONS

Wheelbase 47.7 inches
Seat Height 29.5 inches
Ground Clearance 6 inches
Fuel Tank 3.17 gallons
Weight 225 Pounds
L x W x H 69.7 x 29.8 x 34.8 inches

OTHER

Colors Red, White, Black
Warranty 12-Month Factory Limited Warranty Coverage
